About This

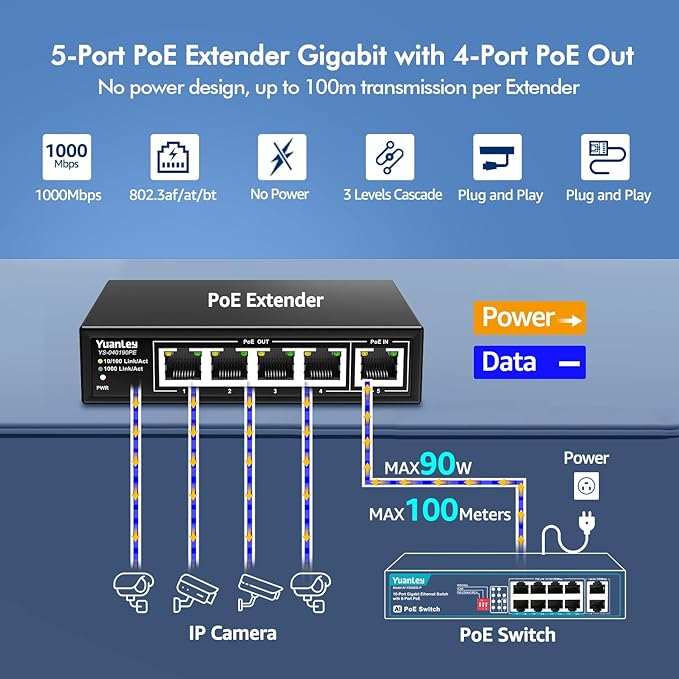

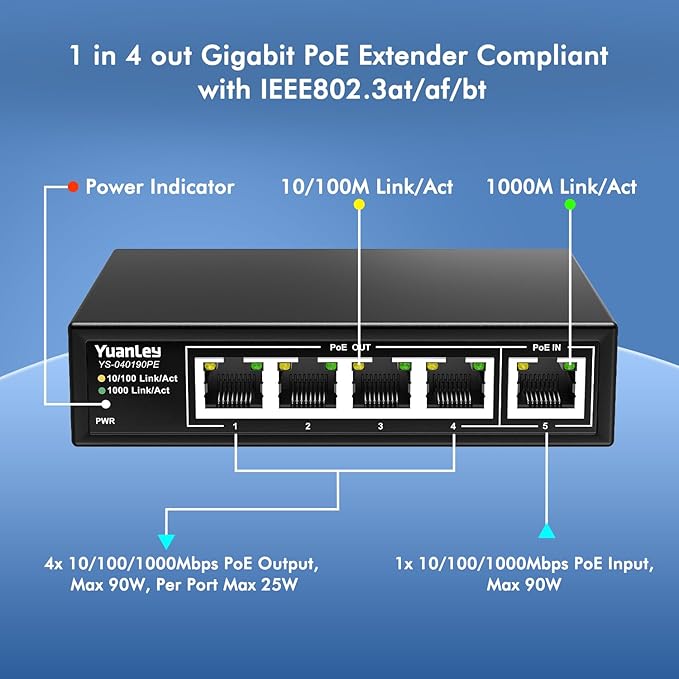

• 【Gigabit 5 Channel Passive PoE Extender】This 5 port gigabit PoE extender include 4 PoE out and 1 PoE in(Max 90W). It can provides PoE power to up to four PoE devices, 10/100/1000Mbps speed. Each PoE extender has an transmission distance of 330ft(100m).
• 【IEEE802.3af/at/bt】This 4 channel PoE extender works with all standard IEEE802.3af/at/bt POE switches, POE injectors and POE NVRs. PoE voltage is 44-57V. The Max input is 90W, and the 3-5 Port Max output is 30W, 2 Port Max output is 60W. Each port can power standard PoE devices like IP phones, IP security, IP speakers, etc.

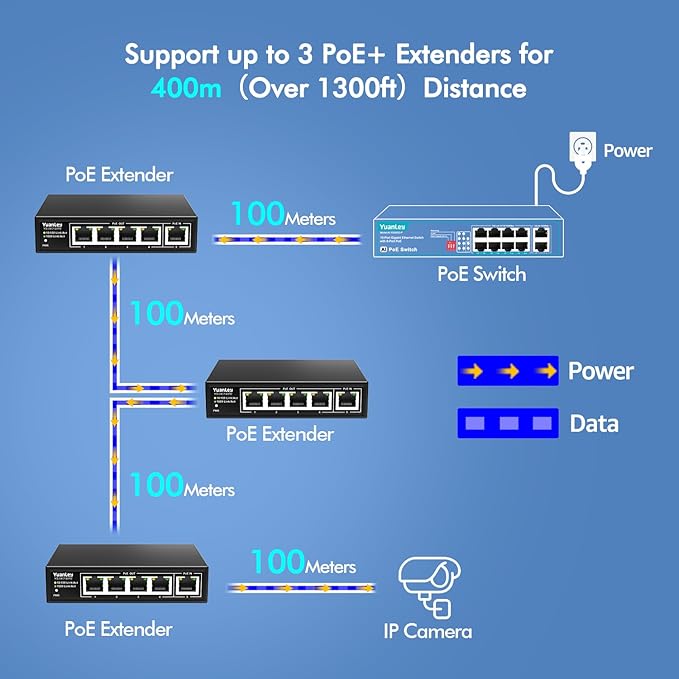

• 【3 Levels Cascade】Extra 330ft(100m) PoE+ data transmission can be extended through a YuanLey PoE repeater. And it supports 3 levels cascade, therefore, it can achieve PoE data transmission up to 1312ft with 3 PoE extender.

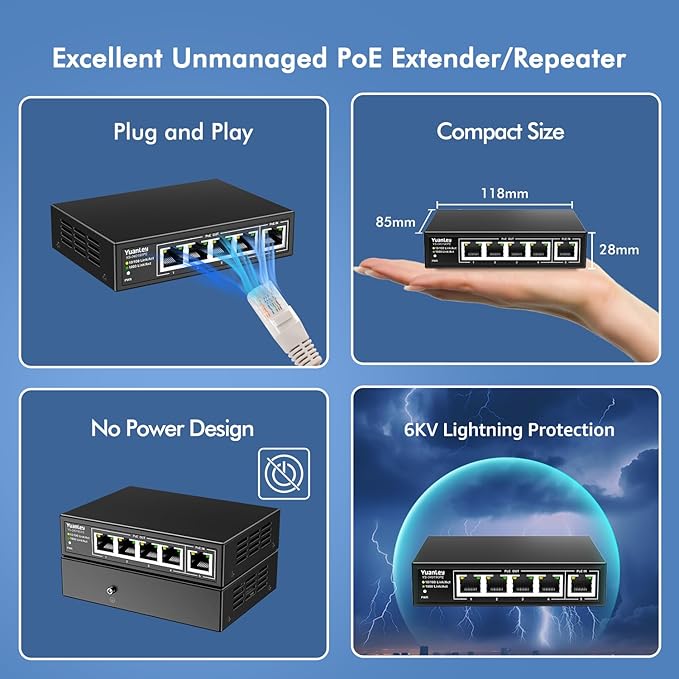

• 【Unmanaged PoE Repeater】No setup is required, no power, just need a network cable to expand PoE network, plug and play. Supports automatic detection of devices and powers compliant standard PDs.

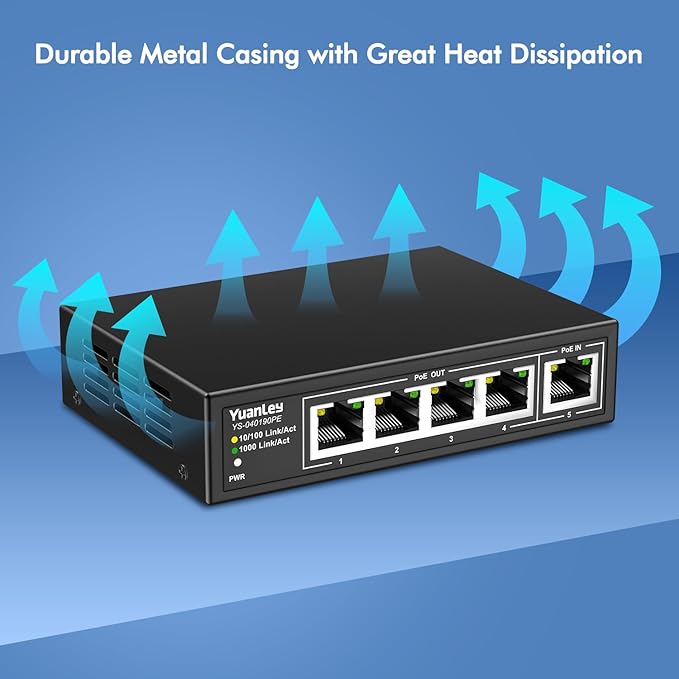

• 【Rugged Metal Housing with 6KV Surge Protection】Durable metal casing for impact resistance and heat dissipation, with 6KV surge protection to safeguard against lightning and power surges.

Overview

• Brand : YuanLey
• Number of Ports : 5
• Included Components : Power Cable, User Manual, YuanLey 5-Port PoE Extender
• Compatible Devices : Desktop, IP phone, IP security, IP speaker, Laptop, Printer
• Voltage : 44 Volts (DC)
